Suction lifters operated by vacuum (7 Sizes)

Suction lifters operated by vacuum (7 Sizes)



Vacuum lifting cylinders are operated with only one vacuum line.
When the vacuum is switched on, the piston with the suction cup extends.
When the suction cup hits the workpiece, independent of the distance
it is touched sensitively.
The suction cup returns to its end position with the workpiece sucked in.



The advantages at a glance:

Gripping independent of distance
Lightning-fast reversal of direction without pressure on the workpiece
Simple energy supply - only one line, only one valve
Many variants for different applications











7 Items

per page
Set Descending Direction
  1. Hubsauger DHS3040-S mit Steckverschraubung und Saugnapf
    Suction Lifter DHS3060-S

    • switch-on the vacuum to pick up the parts
    • 7N lifting power
    • travel 60mm
    • non-rotating
    Learn More
    €181.06
    Excl. 19% VAT, excl. Shipping Cost

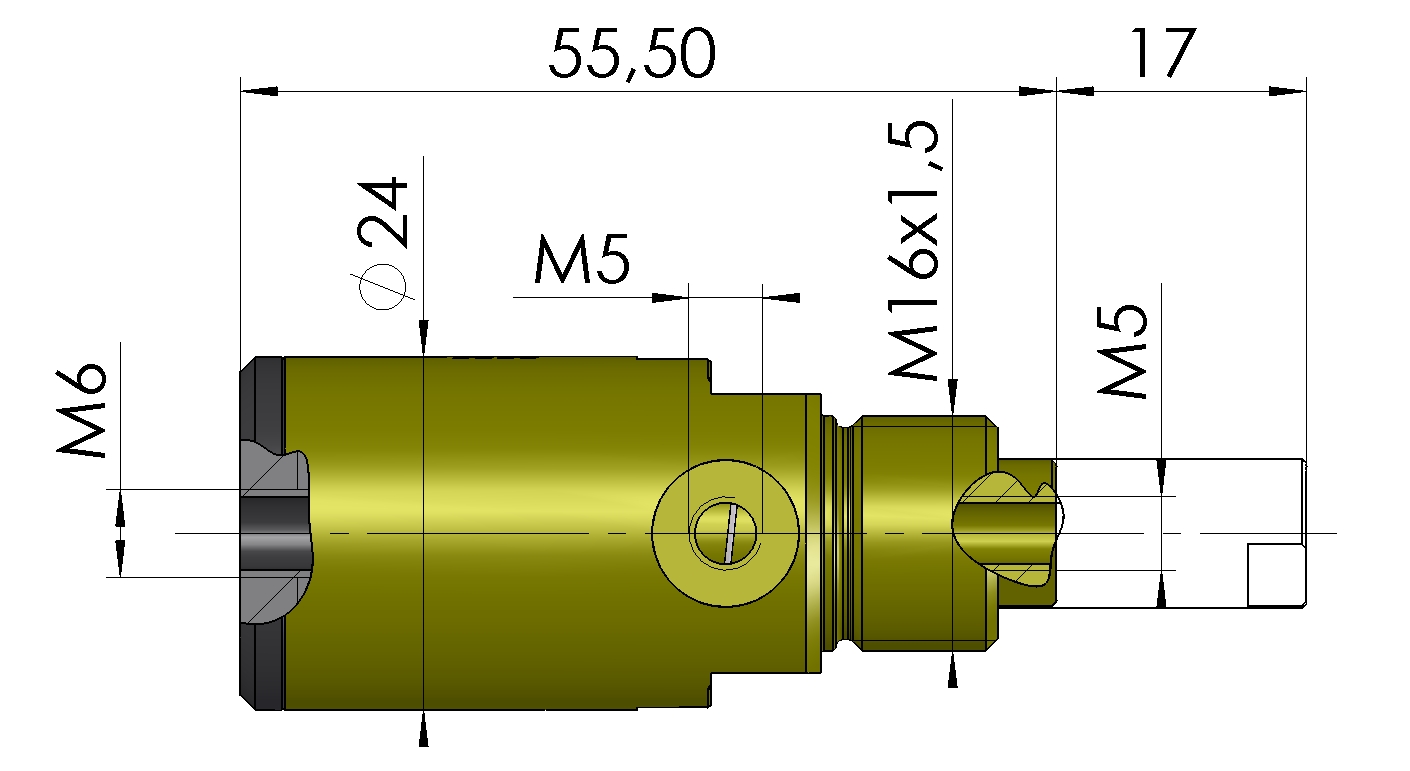

  2. Hubsauger DHS2017-S mit Steckverschraubung und Saugnapf
    Suction Lifter DHS2017-S

    • switch-on the vacuum to pick up the parts
    • 3N lifting power
    • travel 17mm
    • non-rotating
    Learn More
    €86.67
    Excl. 19% VAT, excl. Shipping Cost

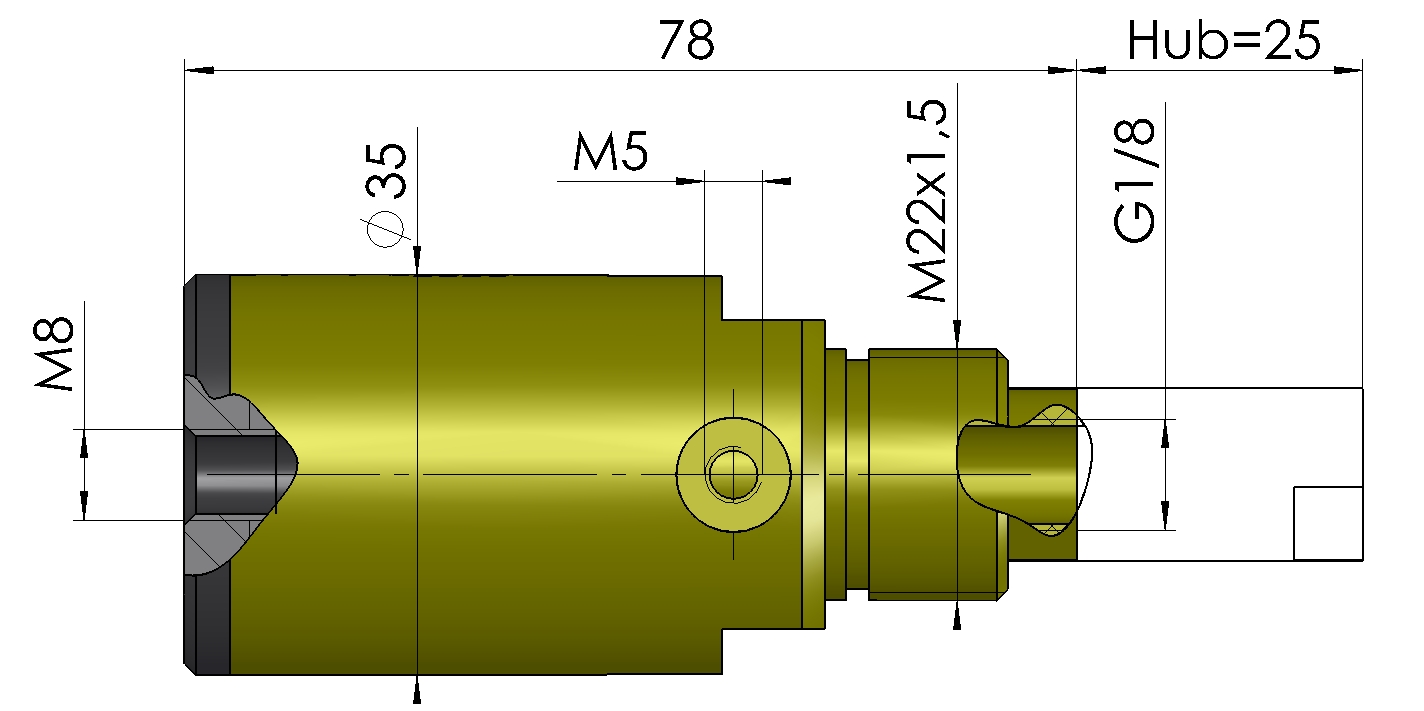

  3. Hubsauger mit Steckverschraubung und Saugnapf DHS3025-S
    Suction Lifter DHS3025-S

    • switch-on the vacuum to pick up the parts
    • 7N lifting power
    • travel 25mm
    • non-rotating
    Learn More
    €127.45
    Excl. 19% VAT, excl. Shipping Cost
  4. Hubsauger DHS3040-S mit Steckverschraubung und Saugnapf
    Suction Lifter DHS3040-S

    • switch-on the vacuum to pick up the parts
    • 7N lifting power
    • travel 40mm
    • non-rotating
    Learn More
    €147.82
    Excl. 19% VAT, excl. Shipping Cost
  5. Hubsauger DHS3040-HS mit Steckverschraubung und Saugnapf
    Suction Lifter DHS3040-HS

    • switch-on the vacuum to pick up the parts
    • HS means "High-Speed"
    • 8N lifting power
    • travel 40mm
    • non-rotating
    • very short configuration
    Learn More
    €176.36
    Excl. 19% VAT, excl. Shipping Cost
  6. Hubsauger DHS5530 mit Steckverschraubung und Saugnapf
    Suction Lifter DHS5530-S

    • switch-on the vacuum to pick up the parts
    • 50N lifting power
    • travel 30mm
    • non-rotating
    Learn More
    €187.16
    Excl. 19% VAT, excl. Shipping Cost
  7. Hubsauger DHS5080 mit Steckverschraubung und Saugnapf
    Suction Lifter DHS5580





    • switch-on the vacuum to pick up the parts
    • 50N lifting power
    • travel 80mm
    • not rotating- secured

    Learn More
    €227.15
    Excl. 19% VAT, excl. Shipping Cost
