Timing belt conveyor ZF1325-30 · Drive 24V DC · Worm gearbox
Make an enquiry!
We manufacture your timing belt conveyor according to your requirements.
Call
+49 8093 90143 70
Toothed belt conveyor with low-cost drive
Modular design
Multi-track conveyors can be created by stringing several timing belt conveyors together. The drive pinions are driven by a common shaft.
The mounting side of the drive can be customised.
Belt guide without flanged pulleys
Our ZF1325-30 timing belt conveyor impresses with its slim design and secure belt guidance without pulleys.
The toothed belt is conveniently tensioned using a tensioning eccentric.
Slim and slender
The ZF1225-30 has a timing belt width of 25 mm and a tooth pitch of 10 mm (T10) and fits into any gap thanks to its narrow deflection heads.
A 30x30mm aluminium profile is used for the core of the timing belt conveyor.
Timing belts and coatings for every application
You can choose between numerous properties and coatings for the quality of the timing belt.
Whether oil-resistant, suitable for foodstuffs or equipped with various cleats, we will be happy to advise you.
24 V DC motor with worm gear
Cost-effective 24 V worm gear motor (windscreen wiper motor)
- Different gear ratios selectable for optimum power utilisation
- Inexpensive mounting directly on the side of the drive wheel with torque support.
- Can be mounted on the left or right
Einfach zu integrieren dank Systemprofil
Structure
- Base frame made from Bosch 30 x 30 mm strut profile system
- PE belt guides
- Toothed belt pulley with 18 teeth
- Effective diameter ~ Ø57.3 mm
- Anodised aluminium bearing plates
Mounting options
- on the Bosch profile frame with grooves
- on the threaded holes in the bearing brackets
- on customised mounting points
- customised racks
Dimensions as requested by the customer
- Toothed belt pulley T10-18, effective diameter Ø57.3mm
- Toothed belt width 25mm
- Minimum centre distance: 270 mm
- Minimum length: 330mm
- Maximum length 3000mm
Belt speeds (motor arrangement):
- 2.5 (right) / 6.3 (right) / 9 (right) / 12.5 (right) / 14.5 (left) / 19.8 (left) / 18 (left) / 21 (right) / 21.6 (left) / 25.2 (right) 36 (left oder right) / 50 (left)
- Speed adjustable towards 0 using speed controller (accessory)
- The maximum possible belt speed depends on the conveyor belt size and load.
The right conveyor belt for every application
- approved for foodstuffs
- heat-resistant
- oil-resistant
- transparent for transmitted light
- antistatic finish
- suitable for accumulation
- with various surface structures
- with welded-on profiles
Order example
ZF1325-30-500-2300-20-3S-LA
- ZF = Toothed belt conveyor
- 13 = Drive with screen wiper motor 24 V DC
- 25 = Belt width 25 mm
- 30 = Support profile 30 x 30 mm
- 500 = Width at the outer edges of the outer conveyor lines
- 2300 = Overall length outside (= centre distance 1140 mm)
- 20 = Belt speed
- 3S = Number of conveyor lines 3
- LU = Motor arrangement outside left

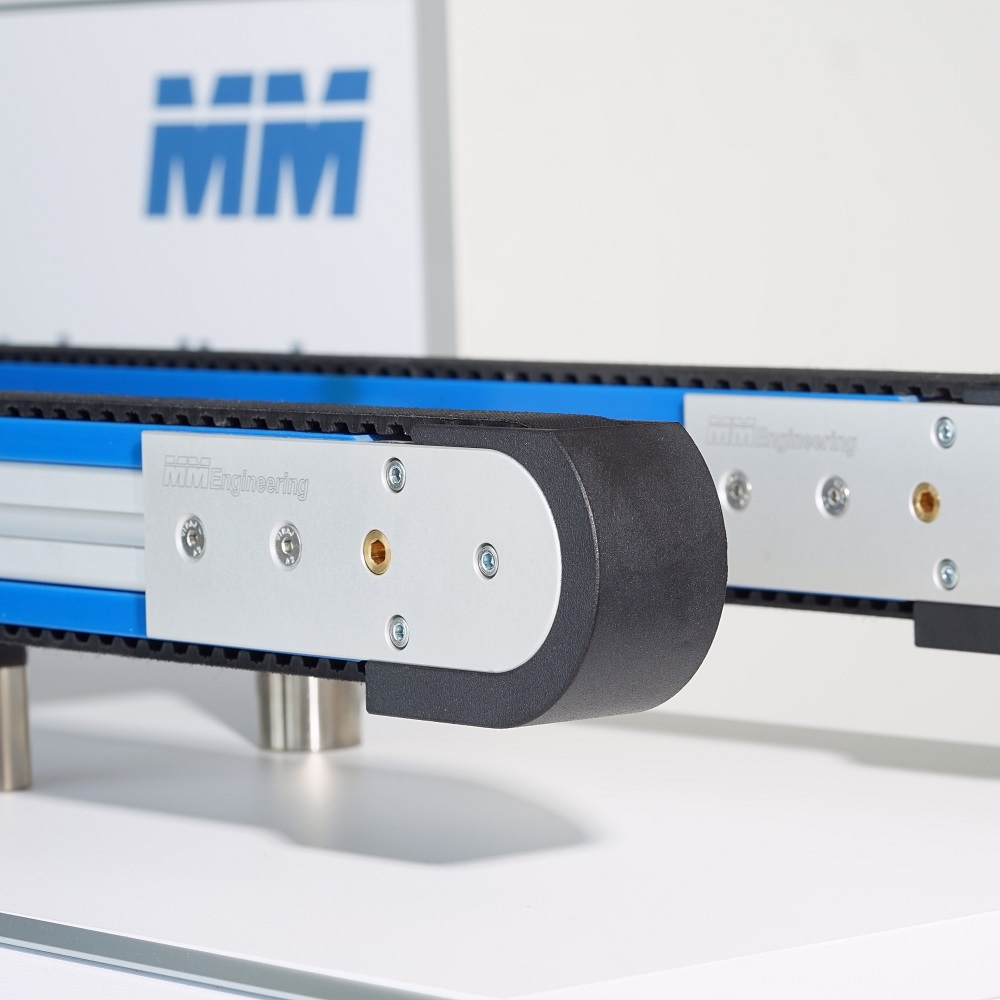

Protective cap for toothed belt pulley
Frame with feet or castors
