Kompakter kräftiger Zahnriemenförderer
Modular design
Multi-track conveyors can be created by stringing several timing belt conveyors together. The drive pinions are driven by a common shaft.
The mounting side of the drive can be customised.
Belt guide without flanged pulleys
Our ZF1225-30 timing belt conveyor impresses with its slim design and secure belt guidance without pulleys.
The toothed belt is conveniently tensioned using a tensioning eccentric.
Slim and slender
The ZF1225-30 has a timing belt width of 25 mm and a tooth pitch of 10 mm (T10) and fits into any gap thanks to its narrow deflection heads.
A 30x30mm aluminium profile is used for the core of the timing belt conveyor.
Timing belts and coatings for every application
You can choose between numerous properties and coatings for the quality of the timing belt.
Whether oil-resistant, suitable for foodstuffs or equipped with various cleats, we will be happy to advise you.
Three-phase motor with spiroplane drive
Robust, powerful 230 V/400 V motor with angular gearbox
- Various gear ratios selectable for optimum power utilisation
- Space-saving installation underneath the conveyor with covered toothed belt
- Can be mounted on the left or right
Easy to integrate thanks to system profile
Structure
- Base frame made from Bosch 30 x 30 mm strut profile system
- Belt guides PE
- Toothed belt pulley with 18 teeth
- Effective diameter ~ Ø57.3mm
- Anodised aluminium bearing brackets
Mounting options
- on the Bosch profile frame with grooves
- on the threaded holes in the bearing brackets
- at customised mounting points
- Frames made to measure

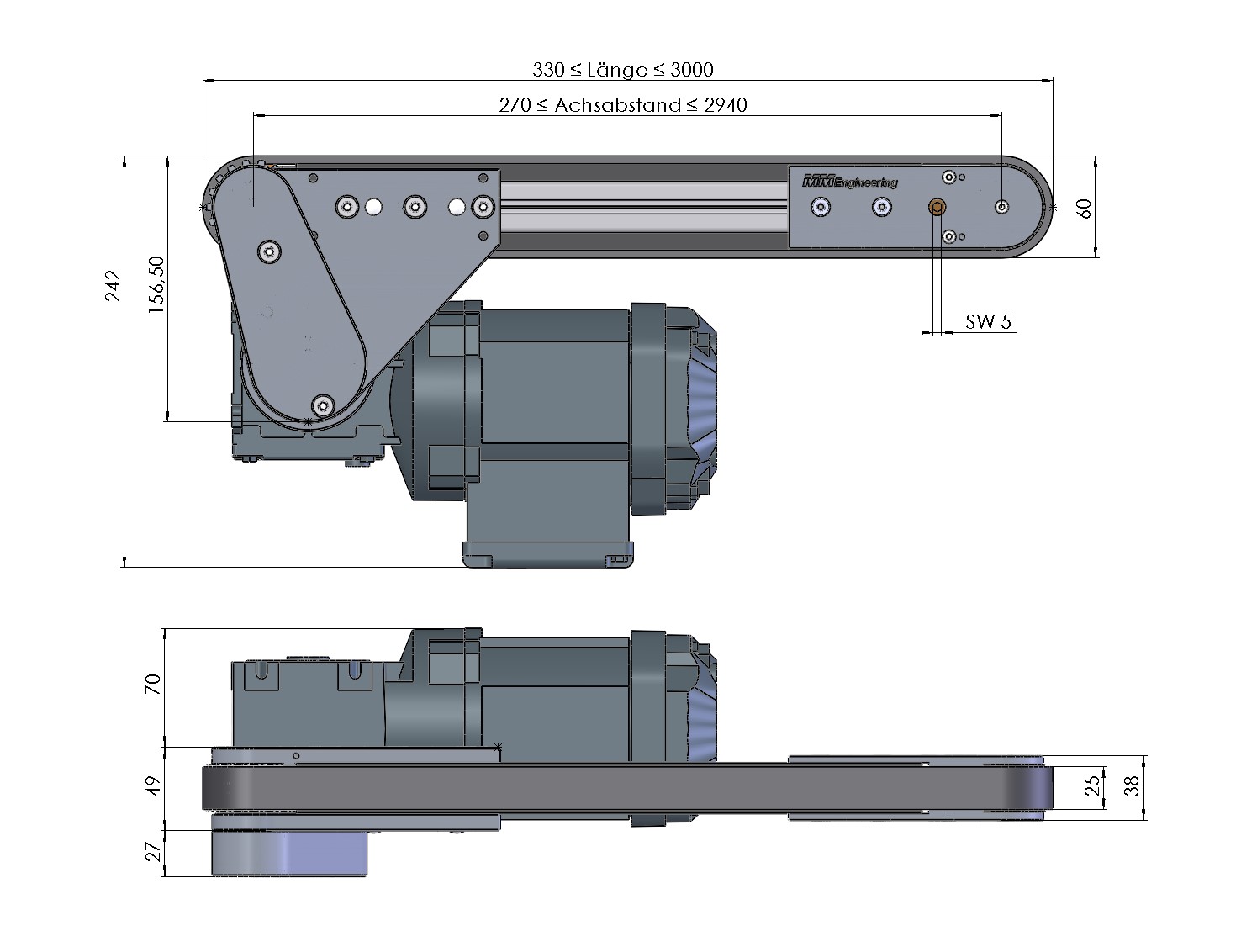

Dimensions as requested by the customer
- Toothed belt pulley T10-18, effective diameter Ø57.3mm
- Toothed belt width 25mm
- Minimum centre distance: 270 mm
- Minimum length: 330mm
- Maximum length 3000mm
- Hollow shaft drive Ø 10H8
Belt speeds at 50 Hz
3 / 4,8 / 7,2 / 9,5 / 12 / 16,4 / 22,8 / 28,6 / 35
Speed control is possible by means of a frequency inverter
(not available from us)
The right conveyor belt for every application
- approved for foodstuffs
- heat-resistant
- oil-resistant
- transparent for transmitted light
- antistatic finish
- suitable for accumulation
- with various surface structures - with welded-on profiles
Intervention protection
Frame with feet or castors
Adjustable side guides
Order example
ZF1825-30-300-1630-12-2S-LU
- ZF = Toothed belt conveyor
- 12 = Drive with three-phase motor and spiroplane drive
- 25 = Belt width 25 mm
- 30 =Carrier profile 30 x 30 mm
- 300 = Breite an den Außenkanten der äußeren Förderstränge
- 1630 = Overall length outside (= centre distance 1140 mm)
- 12 = Belt speed
- 2S =Number of conveyor lines 2
- LU = Motor arrangement bottom left
