Swivel Bracket SW25
Delivery Time
2-3 Tage
- from 5 for €162.79 each (Save 5%)
- from 10 for €155.94 each (Save 9%)
- from 25 for €150.80 each (Save 12%)
Excl. 19% VAT, excl. Shipping Cost
- is mounted on the rotary table DT36025 and thus offers extended mounting possibilities of the component to be tilted
- precision milled part made of anodized aluminum
- 2-part screwed and pinned
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
CAD (step) SW25 | zip | 70.8 KB | Download | |
|
Katalog Zubehör Positioniersystem manuell / Calalogue Accessoires Positioning Systems | 7.1 MB | Download |
Function
- The swivel bracket is mounted on the turntable of the DT36025 rotary table and thus offers extended mounting possibilities of the component to be swiveled
- Versatile mounting options
Advantages
Design
Versatile use
The swivel bracket can be used in many ways to connect MM Engineering positioning units.
The hole pattern is compatible with all positioning modules of size 25.
Precisely manufactured
The swivel bracket is bolted and pinned in 2 parts. It is made of aluminum, machined on all sides and anodized.
Combination example

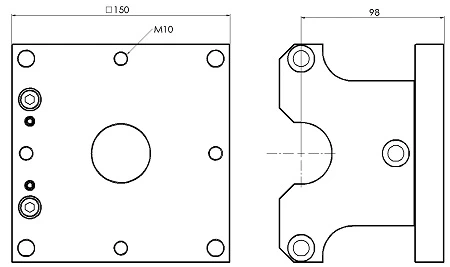

Dimensions
Dimensions
SW25
Write Your Own Review
Bestellcode
SW25
SW = swivel bracket
25 = size 25
