Conveyor belt FB13 · external drive · 24V · inexpensive

Contact us!

We manufacture your conveyor belt according to your requirements.

Phone

+49  8093 90143 70

Conveyor belts of the FB13 series

Characteristic of our conveyors of the FB13 series is the stable frame construction made of aluminum profile system 45 x 45 mm and the inexpensive drive with a 24V worm gear motor (windscreen wiper motor).

The drive motor is located either inexpensively next to the driven conveyor roller or below the conveyor system with power transmission via a covered toothed belt.

The low-cost motor is not designed for 7/24 operation and is therefore a wearing part that can be easily changed.

These conveyor systems are suitable for transporting loads of up to 10 kg with a conveying speed of up to 42 m/min, depending on the dimensions and the conveyor belt properties.

The production is carried out individually according to the customer's requirements.

We carefully select the properties of the conveyor belts according to the customer's requirements.

Here we cooperate with many well-known manufacturers.

Cheap little conveyor belt

Drive technology

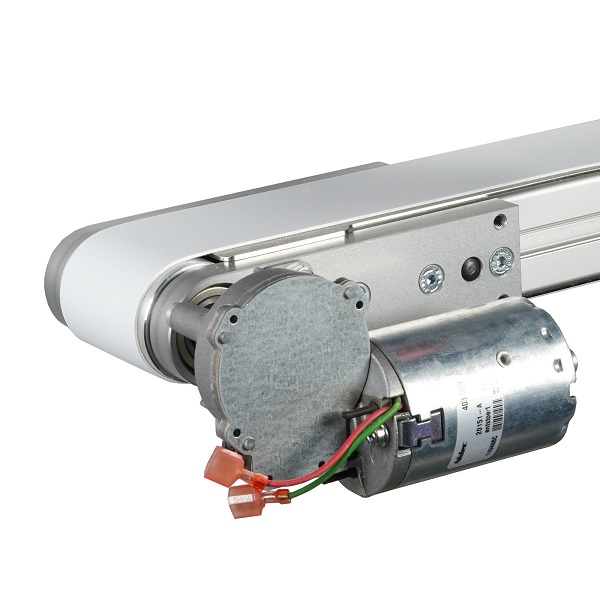

  • Head drive
  • 24V DC worm gear motor
  • Torque supported
  • open cable ends
Narrow conveyor belt

Option: motor below the conveyor bel

  • The motor can optionally be attached below the conveyor belt.
  • The drive takes place via a maintenance-free toothed belt drive,protected by a cover.
  • The drive can be installed on the right or left.
stable conveyor belt

Construction

  • Base frame made from Bosch strut profile system 45 x 45 mm
  • Belt support plate top and bottom made of VA sheet metal 2 mm
  • Spherical wheels with made of aluminum Ø 49 mm with ball bearings
  • Stainless steel axles
  • Anodised aluminum bearing brackets
Conveyor belt with cleats

Mounting options

  • on the Bosch profile frame with grooves
  • at the threaded holes in the bearing brackets
  • at customer-specific attachment points
  • Made-to-measure racks

Conveyor belt any length or width
  • Roller diameter 49 mm
  • Belt width from 50 mm to 300 mm in 1 mm increments
  • Standard widths: 60mm, 100mm, 150mm, 200mm, 300mm
  • Total length from 520 mm to 3000 mm in 1 mm increments
  • The maximum dimensions depend on the belt quality and the conveying load
Conveyor belt with parts bunker

Belt speeds (m/min) (motor arrangement):

  • 2 (RA) / 5 (RA) / 7.5 (RA) / 10.5 (RA) / 14.5 (LA) / 16 (LA) / 18 (LA) / 21 (RA) / 30 (LA) / 42 (LA)
  • Speed adjustable towards 0 using speed controller DR10 (accessory)
  • The maximum possible belt speed depends on the conveyor belt size, belt material and load.

Belt materials for every purpose
  • approved for food
  • heat resistant
  • oil resistant
  • transparent for transmitted light
  • equipped antistatic
  • accumulatingwith different surface structures
  • with welded profiles

Order example

FB13-400-1400-24V-DC-10,5-RA-MK

  • FB13 = Conveyor belt series FB 13
  • 400 = Belt width 400 mm
  • 1400 = total length 1400 mm
  • 10,5 = Belt speed max. 10,5 m/min
  • RA = Motor arrangement mounted on the drive roller on the right,          viewed from above in the direction of the drive
  • MK = rolling knife edge Ø 15 mm on the deflection side

Motor arrangement

  • RA = Motor right outside
  • LA = Motor left outside
  • LA = Motor left below
  • RU = Motor right below

Preisbeispiel

FB13-100-1000-24V-DC-10,5-RA

  • 1 Pc.: 1.564,00 €
  • 2 Pcs.: 1.449,00 €
  • 3 Pcs.: 1.411,00 €

rollende Messerkante

Drehzahlregelung

Gestell mit Füßen oder Rollen

Gurtführung mittels Keilleiste

Seitenführung 90° abgekantet

Seitenführungen verstellbar

Seitenführung - VA Blech

Drehzahlregler für FB13 & FB21
