Accessoires for motorized rotary tables
Accessories for motorised turntables
Special accessories are available for the motorised turntables. For example, sensors and their brackets.
-
Tailstock, spring loaded RS01Learn More
- Tailstock with revolving center point.
- Spring loaded against clamping device.
-
Inductive proximity switch INS-S-M5-STLearn More- switching distance 0,8mm
- integrated error display
- protection class IP67
- connection type: M5x0,5
-
Inductive proximity switch INS-S-M8-ST- switching distance 2mm
- minimal mounting distance
- innovative ASIC-circuit technology
- integrated error display
- protection class IP67
- connector type: M8x1
-
Sensor bracket for motor rotary table SH36008Learn More
- for mounting of the inductive proximity switch
INS-S-M5-St on the motor rotary table MDT36008
- for mounting of the inductive proximity switch
-

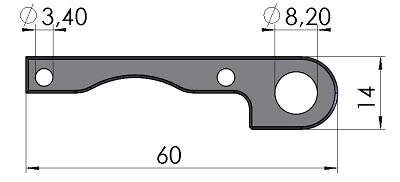

Sensor bracket for motor rotary table SH36012
- for mounting of the inductive proximity switch
INS-S-M8-St on the motor rotary table MDT36012
- for mounting of the inductive proximity switch
-
Sensor holder for motor turntable SH360110Learn More
- For mounting the inductive proximity switch
INS-S-M8-ST on the motor rotary tables MDT360110 and MDT360150 - incl. 2 fixing screws DIN7991 M4x20 VA
- For mounting the inductive proximity switch
