Motor rotary tables coaxial drive BS-line

Motor rotary tables coaxial drive BS-line

6 Items

per page
Set Descending Direction
  1. Motordrhtisch MDT36008-B
    Motor rotary table coaxial drive without motor MDT36008-AK-B

    Massblatt-mini-mdt36008-b

    • gear ratio:                                     40:1
    • backlash:                                      < 0,07°
    • radial clearance:                           < 0,02mm
    • perm. output torque M1:              1,2Nm
    • perm. tilting moment M2:             1,8Nm
    • maximum input rotation:               600 U/min
    • suitable for addition of a standard step motor (Nema 17, 42mm)
    Learn More
    €799.04
    Excl. 16% VAT, excl. Shipping Cost
  2. kompakter Rundtisch mit Schrittmotor
    Motor rotary table coaxial drive with motor MDT36008-AK-M

    MDT36008-M-Massblatt-mini

    • gear ratio:                                     40:1
    • backlash:                                      < 0,07°
    • radial clearance:                           < 0,02mm
    • perm. output torque M1:              1,2Nm
    • perm. tilting moment M2:             1,8Nm
    • maximum input rotation:               600 U/min
    • with standard step motor (Nema 17, 42mm)
    Learn More
    €847.99
    Excl. 16% VAT, excl. Shipping Cost
  3. MPT36008-AK-S
    Motor rotary table coaxial drive with motor and controller MDT36008-AK-S

    MDT36008-S Massblatt-mini

    • gear ratio:                                     40:1
    • backlash:                                      < 0,07°
    • radial clearance:                           < 0,02mm
    • perm. output torque M1:              1,2Nm
    • perm. tilting moment M2:             1,8Nm
    • maximum input rotation:               600 U/min
    • with standard step motor (Nema 17, 42mm) and integrated controller
    Learn More
    €1,185.14
    Excl. 16% VAT, excl. Shipping Cost

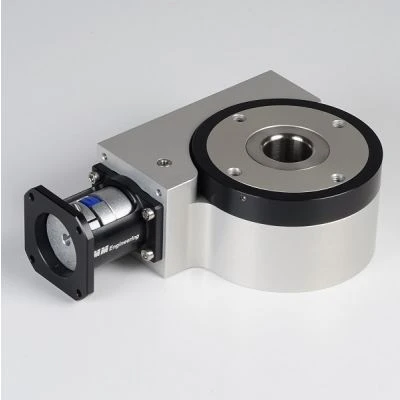

  4. Motordrehtisch MDT36012-B
    Motor rotary table coaxial drive without motor MDT36012-AK-B

    MDT36012-B-Maßblatt-mini-450x249

    • gear ratio:                                     55:1
    • backlash:                                      < 0,1°
    • radial clearance:                           < 0,02mm
    • perm. output torque M1:              3Nm
    • perm. tilting moment M2:             3Nm
    • maximum input rotation:               600 U/min
    • suitable for addition of a standard step motor (Nema 17, 42mm)
    Learn More
    €814.66
    Excl. 16% VAT, excl. Shipping Cost
  5. MDT36012-M-3
    Motor rotary table coaxial drive with motor MDT36012-AK-M

    MDT36012-B-Maßblatt-mini-500x241

    • gear ratio:                                     55:1
    • backlash:                                      < 0,1°
    • radial clearance:                           < 0,02mm
    • perm. output torque M1:              3Nm
    • perm. tilting moment M2:             3Nm
    • maximum input rotation:               600 U/min
    • with standard step motor (Nema 17, 42mm)
    Learn More
    €861.41
    Excl. 16% VAT, excl. Shipping Cost
  6. MDT36012-S-1
    Motor rotary table coaxial drive with motor and controller MDT36012-AK-S

    MDT36012-S-Maßblatt-mini-500x236

    • gear ratio:                                     55:1
    • backlash:                                      < 0,1°
    • radial clearance:                           < 0,02mm
    • perm. output torque M1:              3Nm
    • perm. tilting moment M2:             3Nm
    • maximum input rotation:               600 U/min
    • with standard step motor (Nema 17, 42mm)  and integrated controller
    Learn More
    €1,200.76
    Excl. 16% VAT, excl. Shipping Cost
