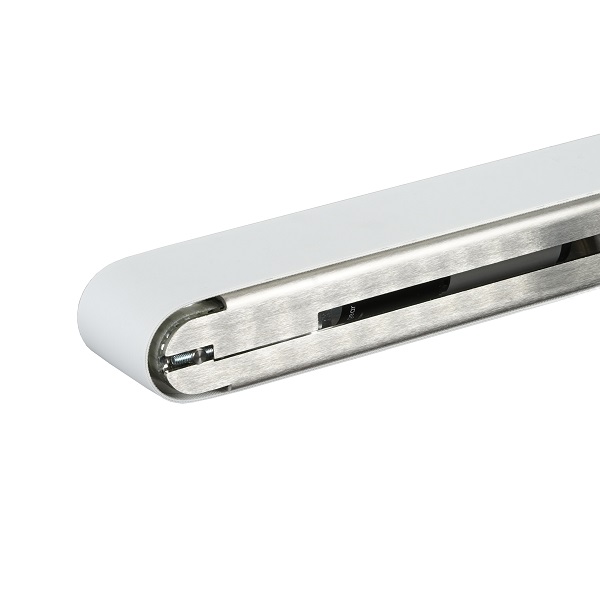

FB21 series miniature conveyor belts
The conveyor belts of the FB21 series have an ultra-compact design due to the geared motor integrated in the belt body.
The conveyor roller diameter is just 37 mm.
Our mini conveyor belts are custom-made with a belt width of 50 mm to 100 mm and an overall length of 250 mm to 1000 mm.
The basic body consists of 2 half-shells made of VA sheet metal, which accommodate the rollers and the drive components and serve as belt support.
Depending on the size of the conveyor system, the highest conveying load is between 1 kg and 2 kg. the maximum speed at 30 m / min, depending on the belt load and size.
It is driven by a 24V DC motor with planetary gear and a toothed belt underneath the belt.
We will be happy to help you with the selection of conveyor belts.
Here we work together with many well-known manufacturers and always find the right belt for your application.

Aufbau
- Förderbandkörper bestehend aus 2 U-Blechen 2 mm VA
- Rollen ballig kugelgelagert aus Aluminium Ø 37 mm
- Achsen aus rostfreiem Stahl

Befestigungsmöglichkeiten
- an der Nut zwischen den Blechschalen
- Hammermuttern wählbar M4 - M6
Bandgeschwindigkeiten (m/min):
- 32 / 11 / 8,5 / 6,6 / 3 / 2,3 / 1,8 / 1,4 / 0,7
- Geschwindigkeit gegen 0 regelbar mittels Drehzahlregler DR10 (Zubehör)
- Die mögliche max. Bandgeschwindigkeit ist abhängig von Förderbandgröße, Gurtmaterial und Zuladung.
Bitte vorher mit uns abklären

- für Lebensmittel zugelassen
- hitzebeständig
- ölresistent
- transparent für Durchlicht
- antistatisch ausgerüstet
- stauförderfähig
- mit verschiedenen Oberflächenstrukturen
- mit aufgeschweissten Profilen
Bestellbeispiel
FB21-50-600-24V-DC-8,5-KL
- FB21 = Förderband Serie 21
- 50 = Gurtbreite 50 mm
- 600 = Gesamtlänge 600 mm
- 24V-DC = Elektromotor
- 8,5 = Fördergeschwindigkeit 8,5 m/min
- KL = Kabelausgang links
Preisbeispiel
FB21-50-600-24V-DC-xx-KR
- 1 Stück: 1.647,00 €
- 2 Stück: 1.562,00 €
- 3 Stück: 1.534,00 €
