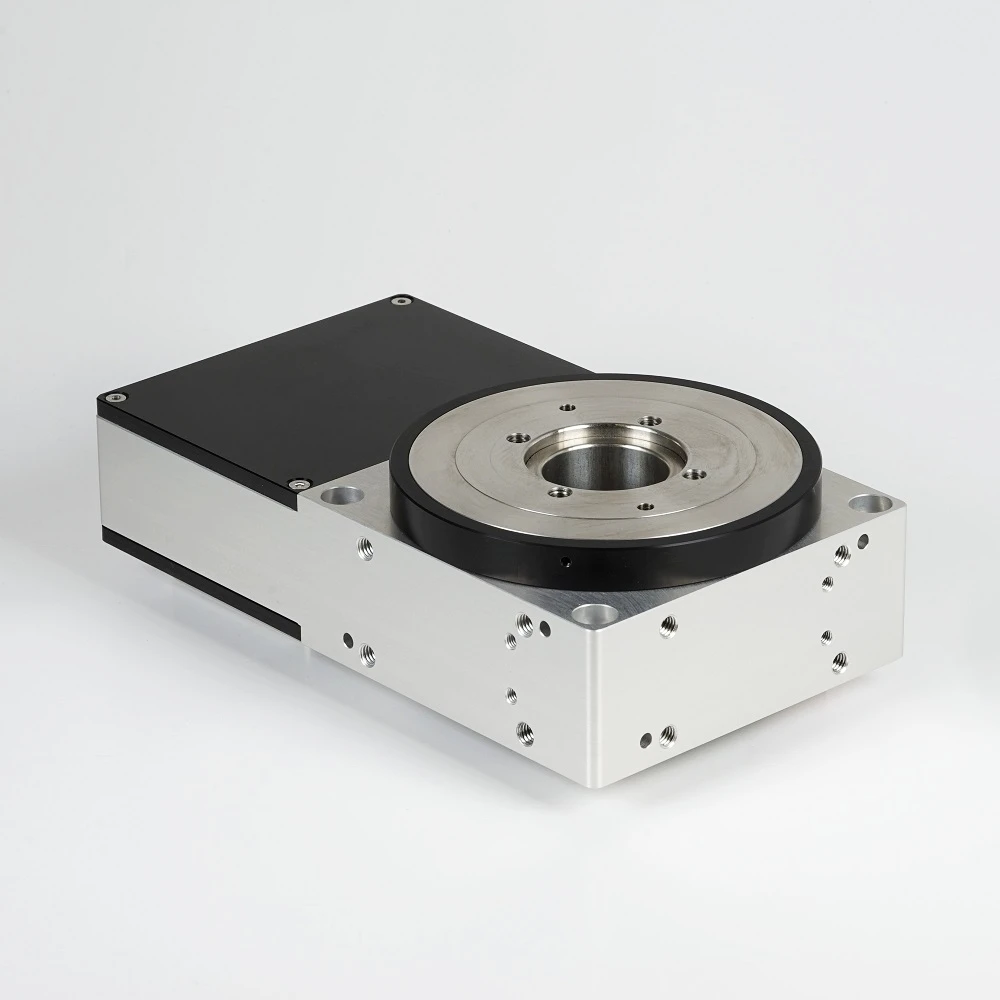

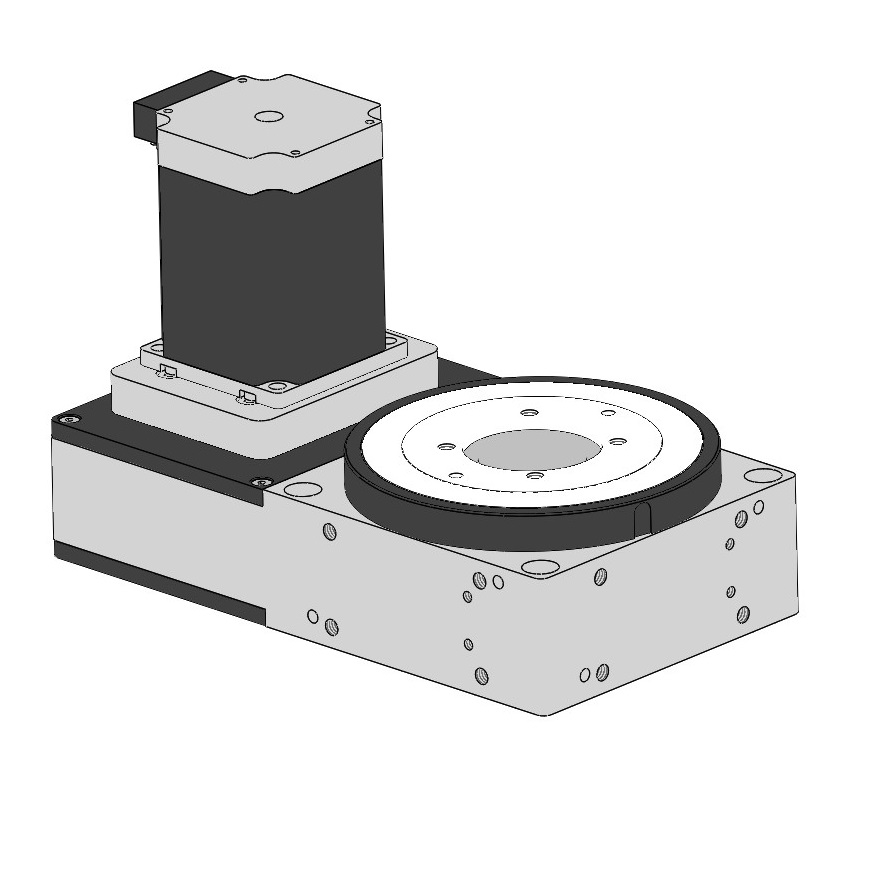

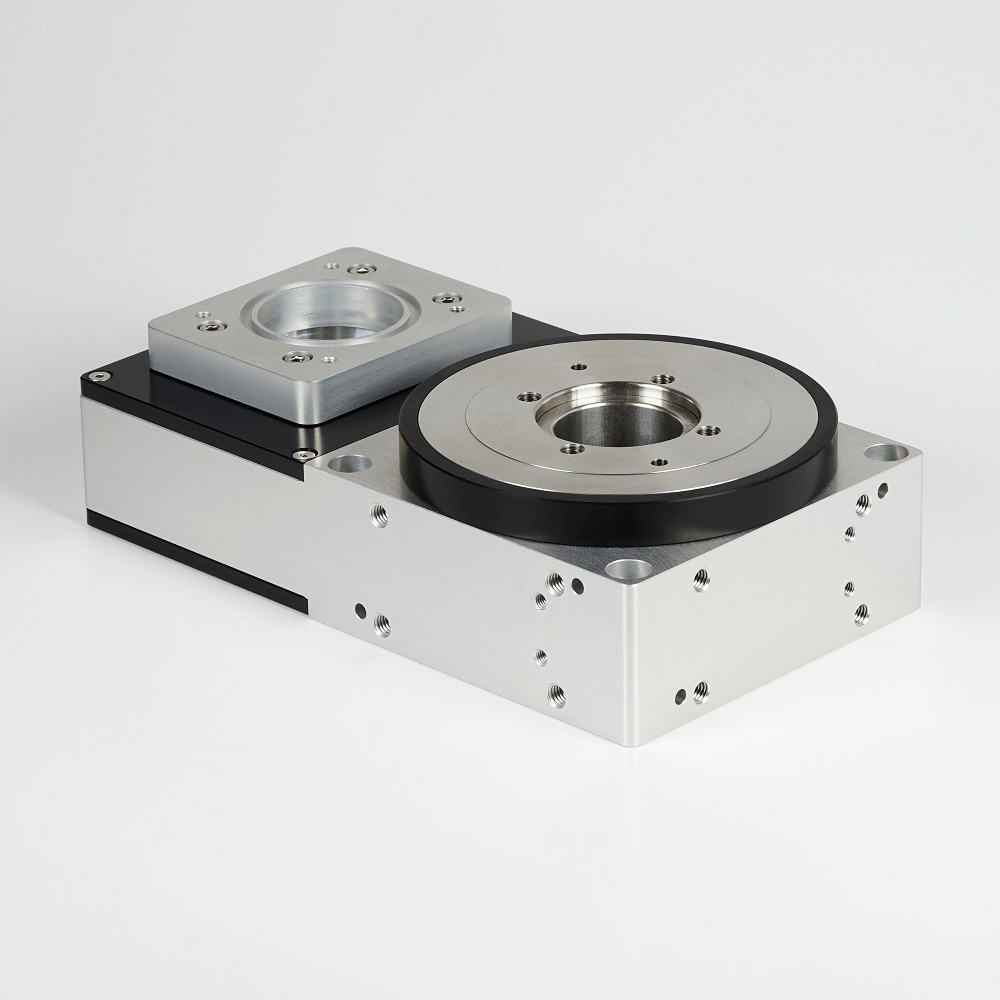

Motor Rotary Table MDT360110-QN
- from 5 pieces 5%
- from 10 pieces 9%
- Gear ratio 2 : 1
- Suitable for mounting a standard stepper motor (Nema 23, Nema 34)
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
CAD (step) MDT360110-QN | zip | 2.4 MB | Download | |
|
|
Programmiersoftware (exe) für Positioniersteuerung | zip | 7 MB | Download | |
|
|
CAD (step) MDT360110-QN-N34 | zip | 5.4 MB | Download | |
|
Flyer Positioniersystem motorisiert / Motorized Actuators | 2.9 MB | Download | ||
|
|
Montageanleitung MDT V001 | 3.3 MB | Download |
Function
- The motorized rotary table is driven by a motor (NEMA 23) and a toothed belt drive.
- The gear ratio is 2 : 1 and the max. input speed is 600 rpm.
Advantages
Fast and dynamic
The precision motor rotary table coaxial drive is perfectly suited for positioning components precisely and quickly.
Easy to integrate
Due to the angular design and the versatile mounting options, the rotary axis can be easily integrated into the machine design.
Useful accessories available
Practical matching additional components such as chucks or reference switches with mounting bracket round off our range of products.
Special features

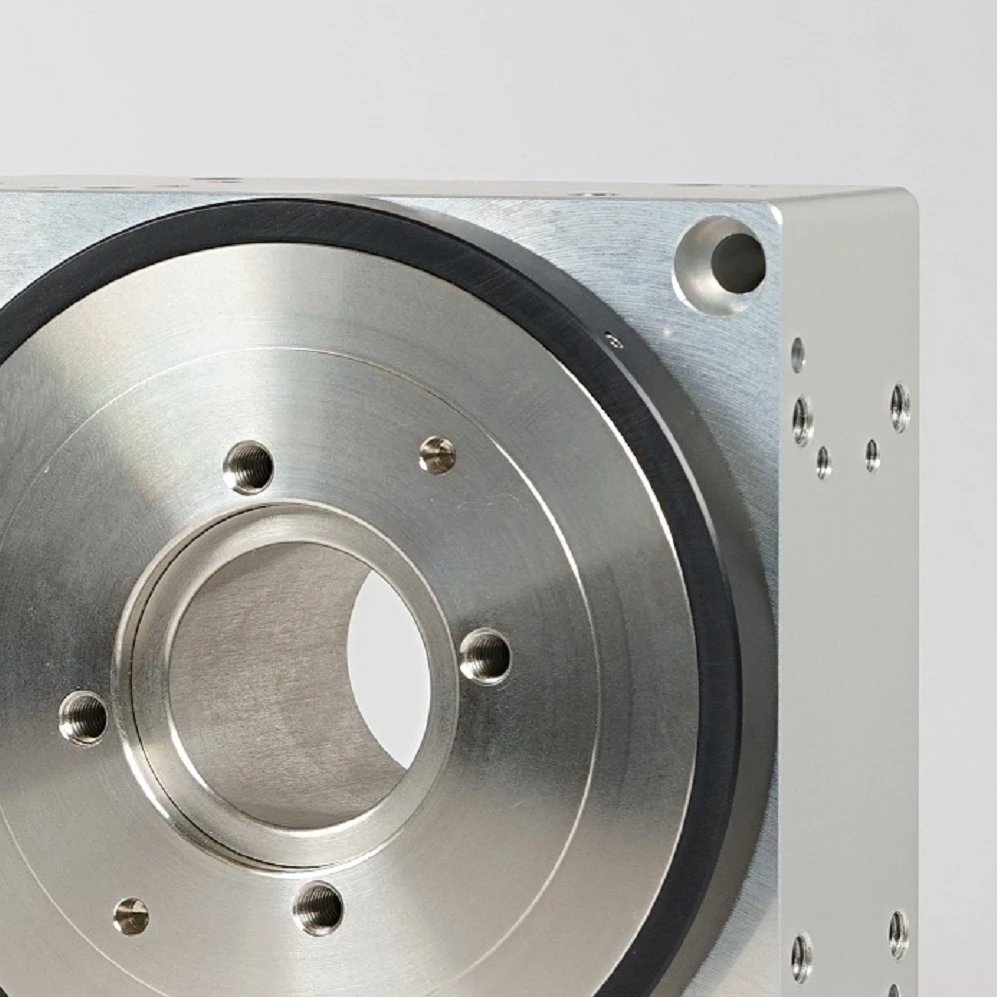

Large passage
The large bore in the hollow shaft with 41 mm diameter allows the passage of pneumatic and electric cables.
It is manufactured to fit H7 and is therefore also suitable for centering the component to be rotated.

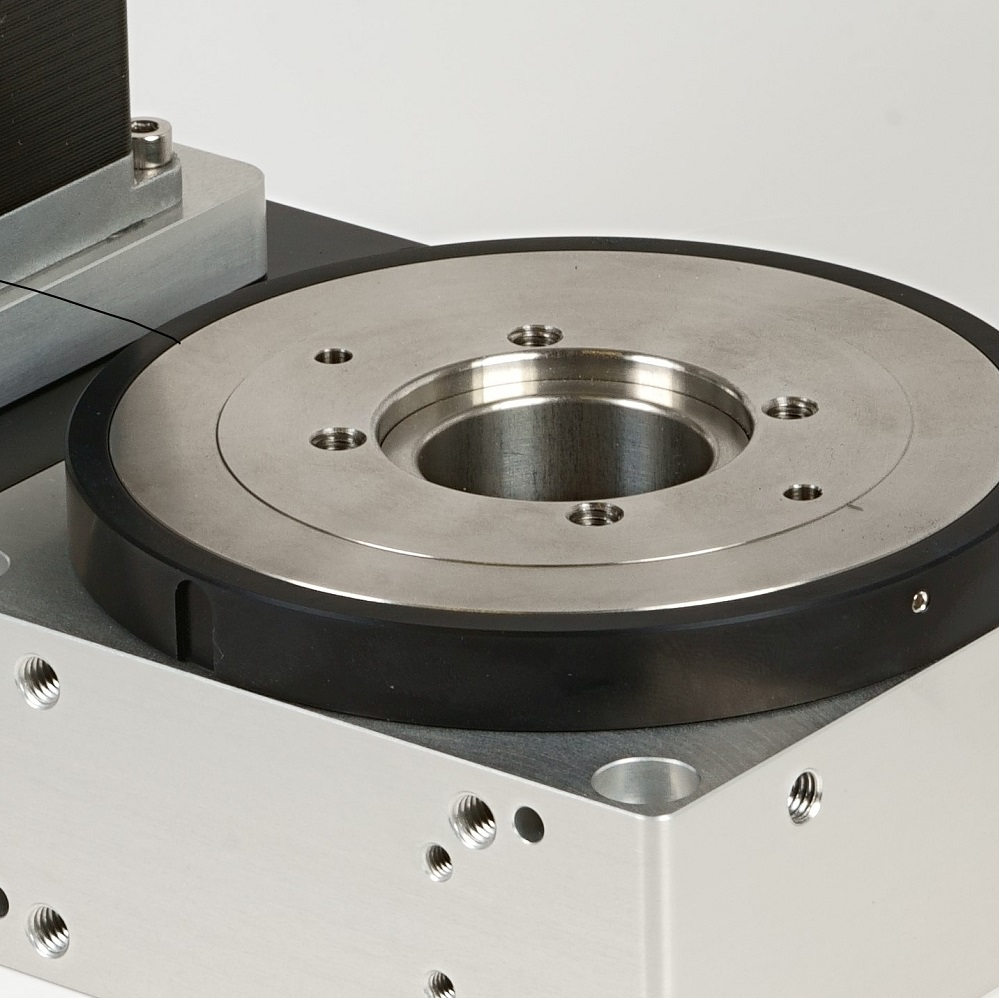

Adjustable positioning ring
The positioning ring has a groove that actuates an inductive proximity switch during reference travel. By turning the ring, the rotational reference point can be set as desired to the position of the mounted component.
Video "Dynamic rotary table"
Combination example
Motorized rotary table Toothed belt drive MDT360110-QN-ZA-MO-S
Chuck SPF-IUGO-125/3-1-M2
Adapter for chuck AD360110-SG-12

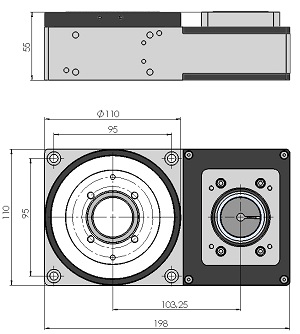

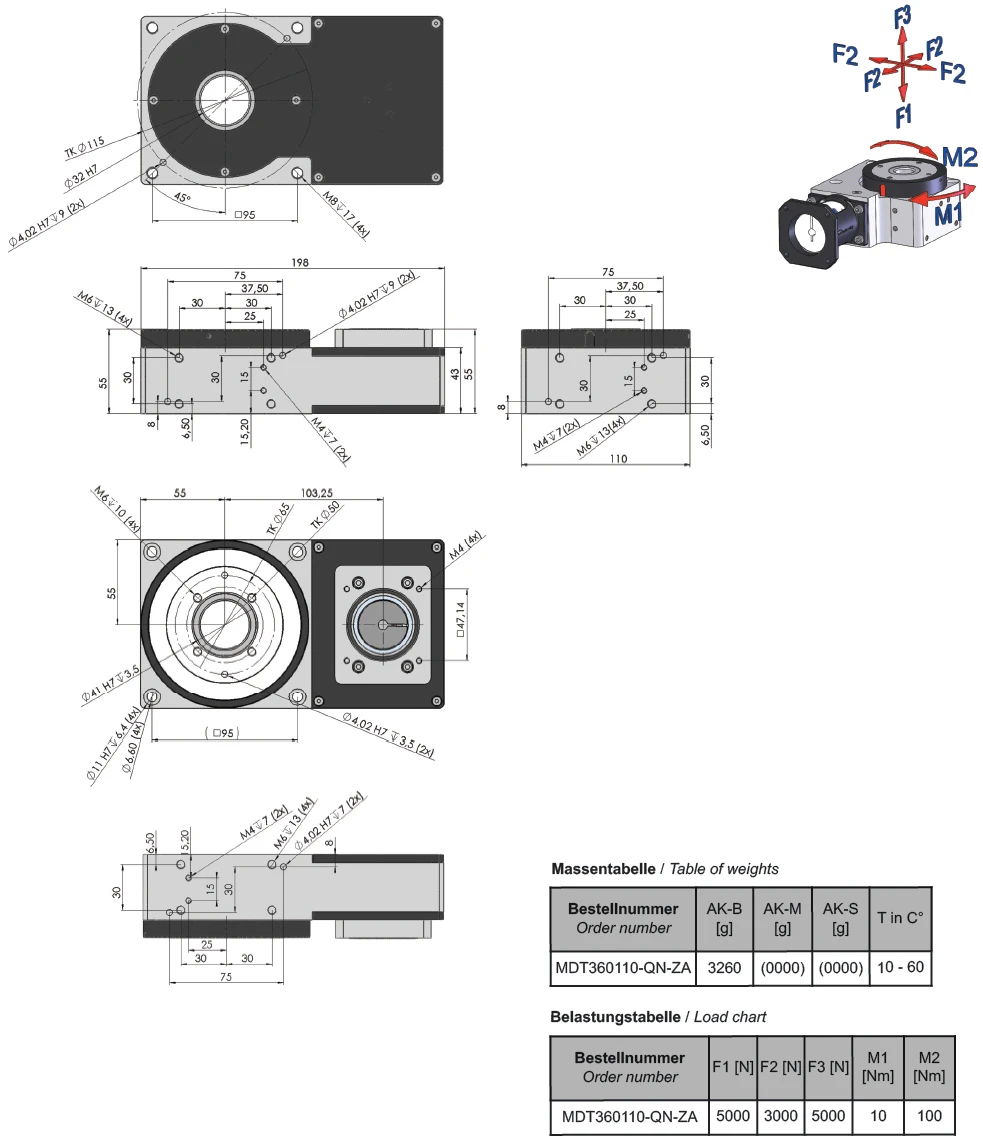

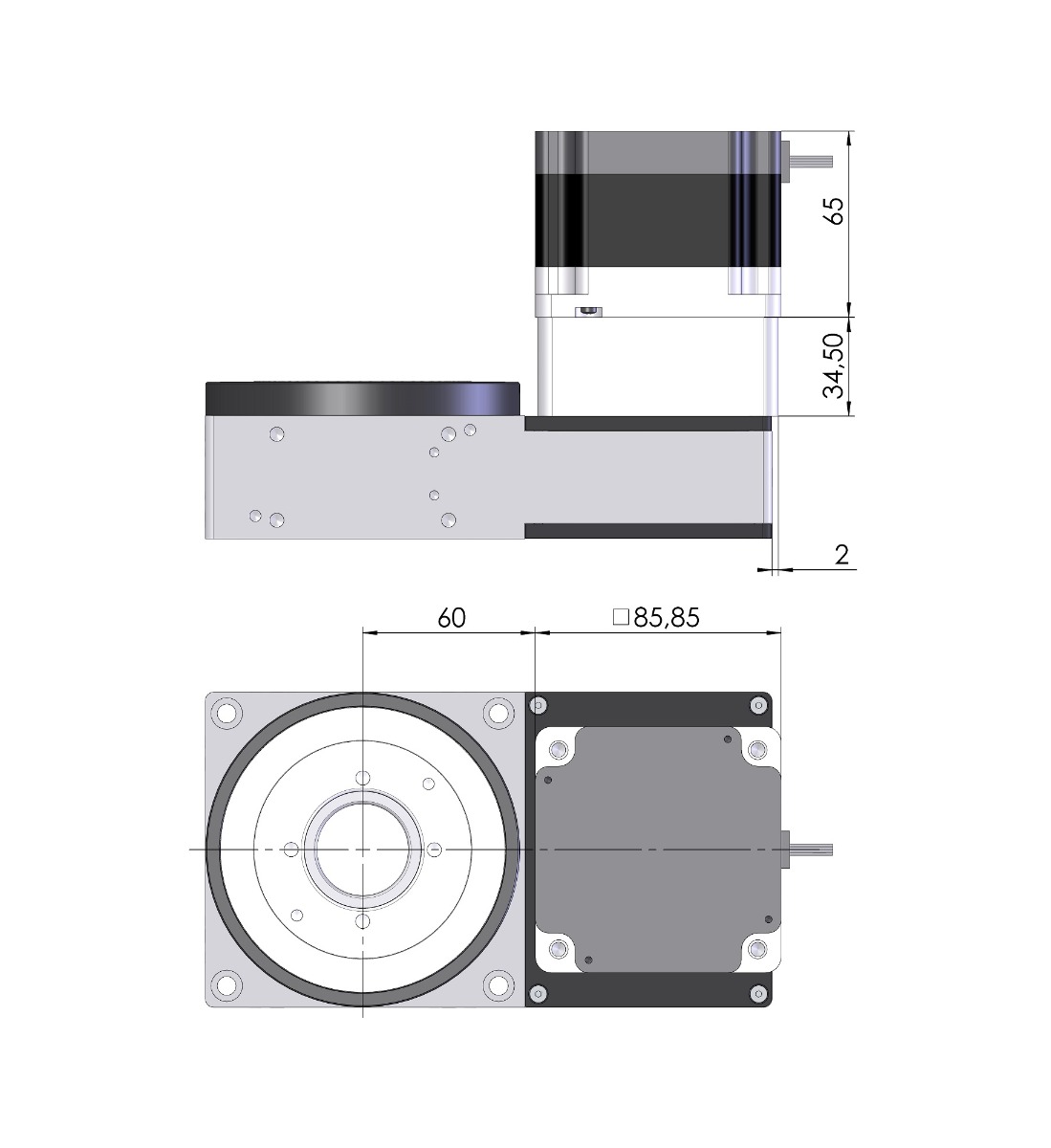

Dimensions

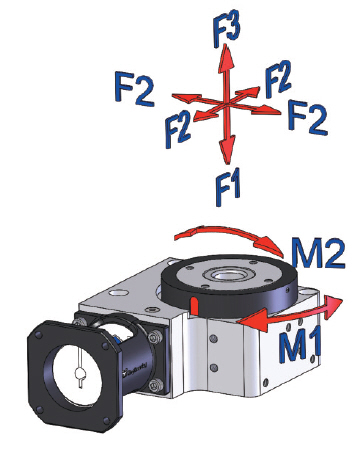

Force diagram
Technical data
Force diagram

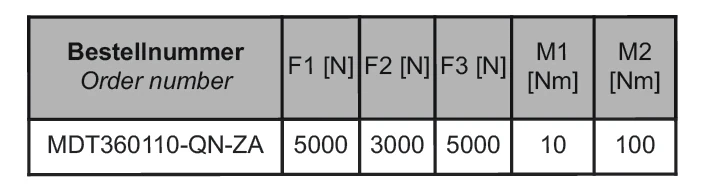

Load values
Precision
Backlash: <0.2
Radial runout of the rotary table: <0.02 mm
Axial runout of the rotary table: <0.02 mm
Speed
Input speed max.: 600 rpm
Output speed max.: 300 rpm
Duty cycle max.: 100%
Efficiency η: 0,85
Dimensions and weight
Gear ratio: 2 : 1
Mass: 3260 g (without motor)
Operating temperature: 10°C to 60°C
Materials
RoHS compliant
Rotary table and hollow shaft: stainless steel
Housing: Anodized aluminum

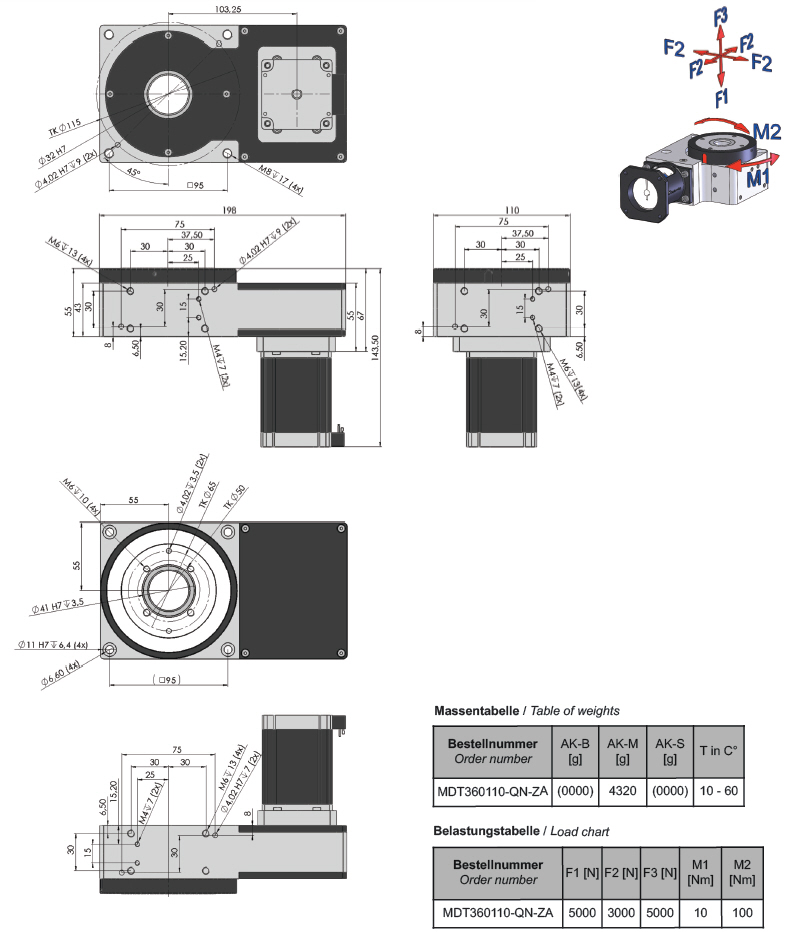

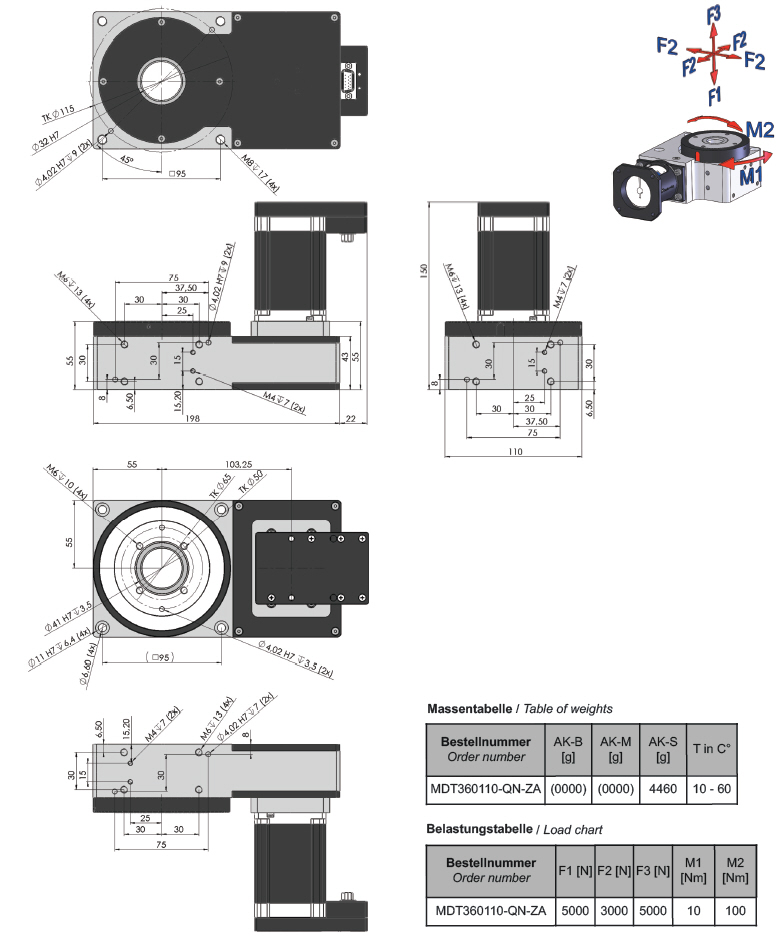

Dimensions
Nema 23 - 2,3Nm Motor data
| Current per winding: | 4,2 A |
| Rotor moment of inertia: | 480 gcm² |
| Inductance per winding: | 2,1 mH |
| Holding torque: | 230 Ncm |
| Resistance per winding: | 0,55 Ohm |
| Resolution: | 1,8° /step |
| Weight: | 1100 g |

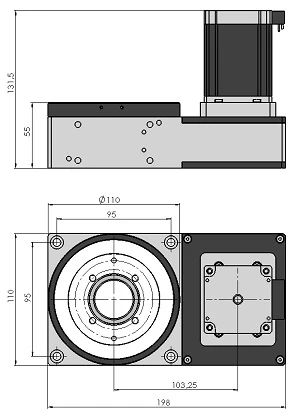

Nema 23 - 2,3Nm design
Nema 23 - 2,3Nm Characteristics
GSM23-1,75Nm Data (stepper motor with controller)
| Current per winding: | 3 A |
| Rotor inertia: | 480 gcm² |
| Holding torque: | 175 Ncm |
| Resolution: | 1,8°/step |
| Weight: | 1300 g |

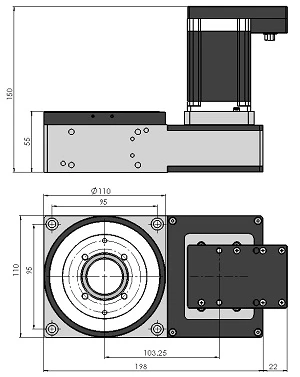

GSM23-1,75Nm design
GSM23-1,75Nm Characteristics
Nema 34 - 3,5Nm Motor data
| Bipolar serial | Bipolar parallel | Unipolar | |
| Current per winding: | 3,18 A | 6,36 A | 4,5 A |
| Indictance per winding: | 7,6 mH | 1,9 mH | 1,9 mH |
| Resistance per winding: | 1,2 Ohm | 0,3 Ohm | 0,6 Ohm |
| Holding torque: | 353 Ncm | 353 Ncm | 250 Ncm |
| Rotor inertia: | 1000 gcm² |
| Resolution: | 1,8°/step |
| Weight: | 1700 g |

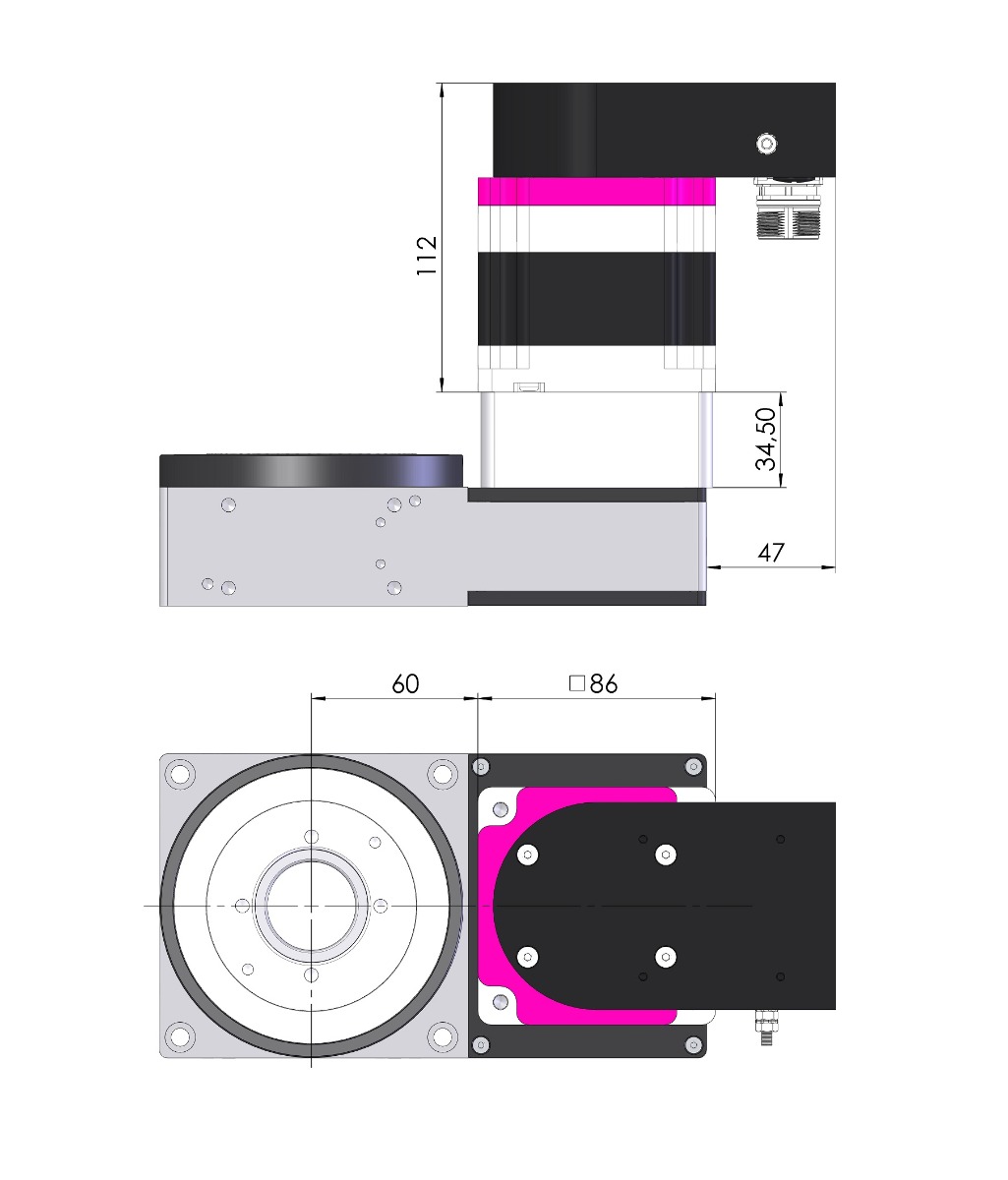

Nema 34 - 3,5Nm design

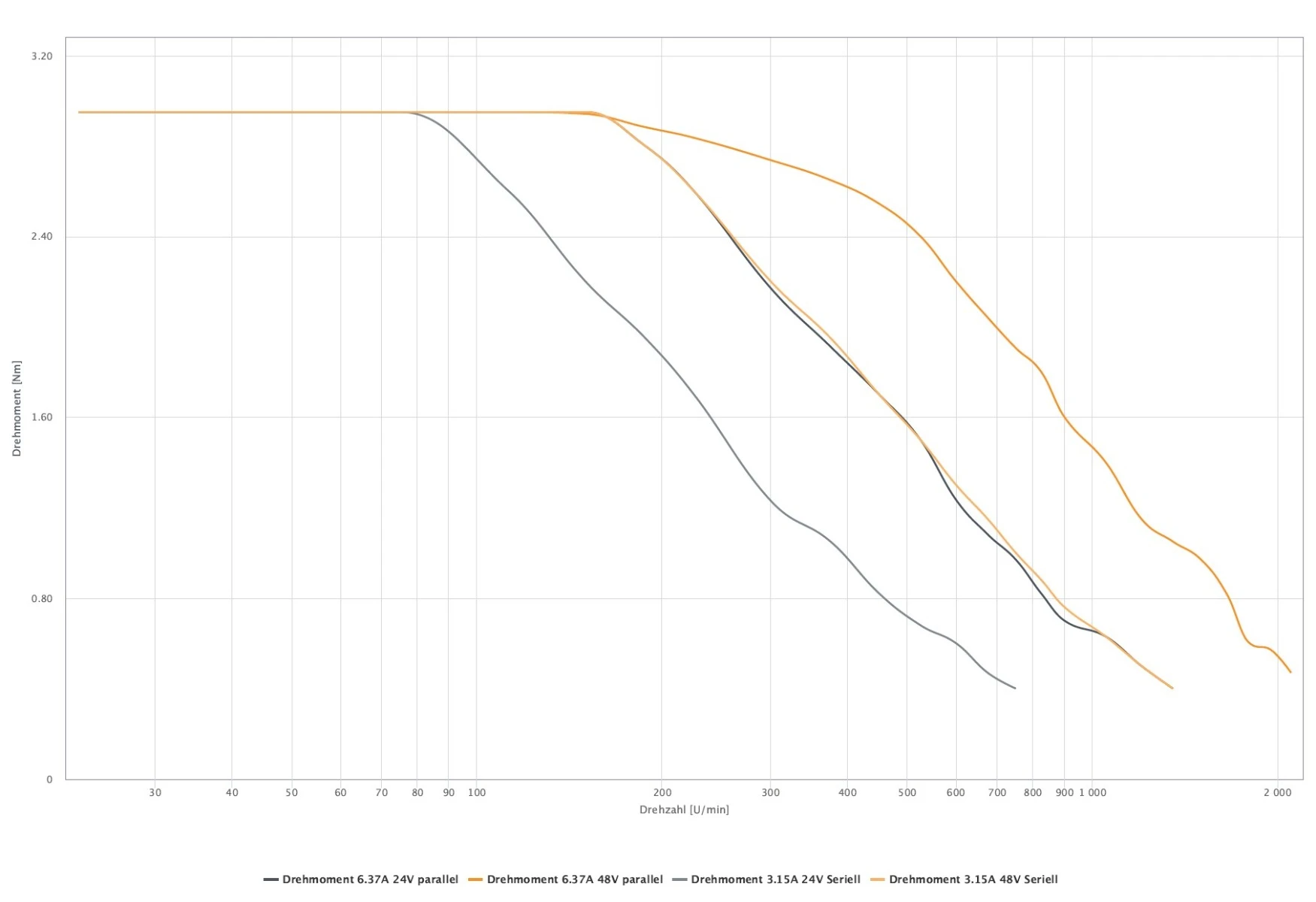

Nema 34 - 3,5Nm characteristics
GSM34-3,3Nm data (stepper motor with controller)
| Current per winding: | 6,3 A |
| Rotor inertia: | 1300 gcm² |
| Holding torque: | 330 Ncm |
| Resolution: | 1,8° /step |
| Weight: | 2500 g |
GSM34-3,3Nm design

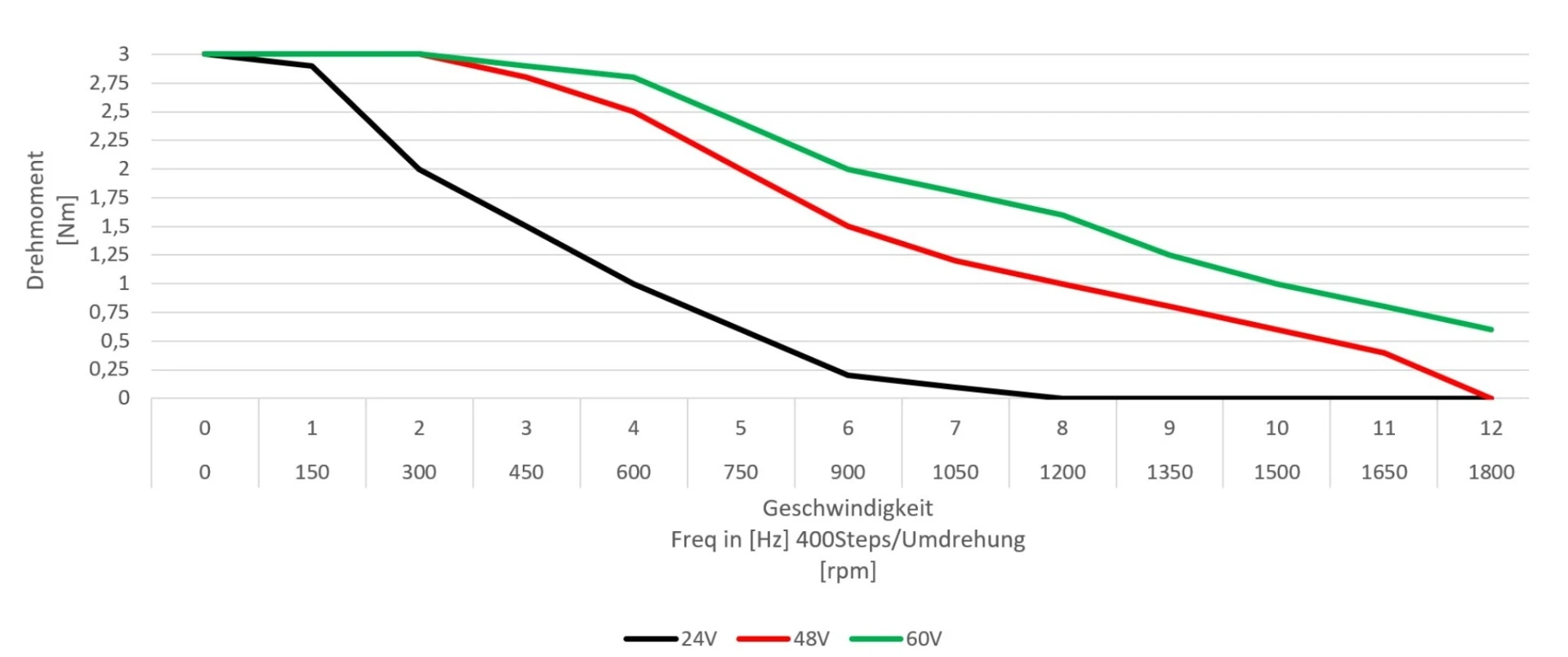

GSM34-3,3Nm characteristics
Bestellcode
MDT360110-QN-MO-B
MDT = motorized rotary table
360 = rotatable by 360° (through)
110 = diameter of the rotary table 110 mm
QN = Quickness Line
MO = Motor orientation upwards (equilateral to the rotary table)
B = without motor
MDT360110-QN-MO-M
MDT = Motor Rotary Table
360 = rotatable by 360° (through)
110 = diameter of the rotary stage 110 mm
QN = Quickness Line
MO = motor orientation upwards (equilateral to the rotary stage)
M = with motor

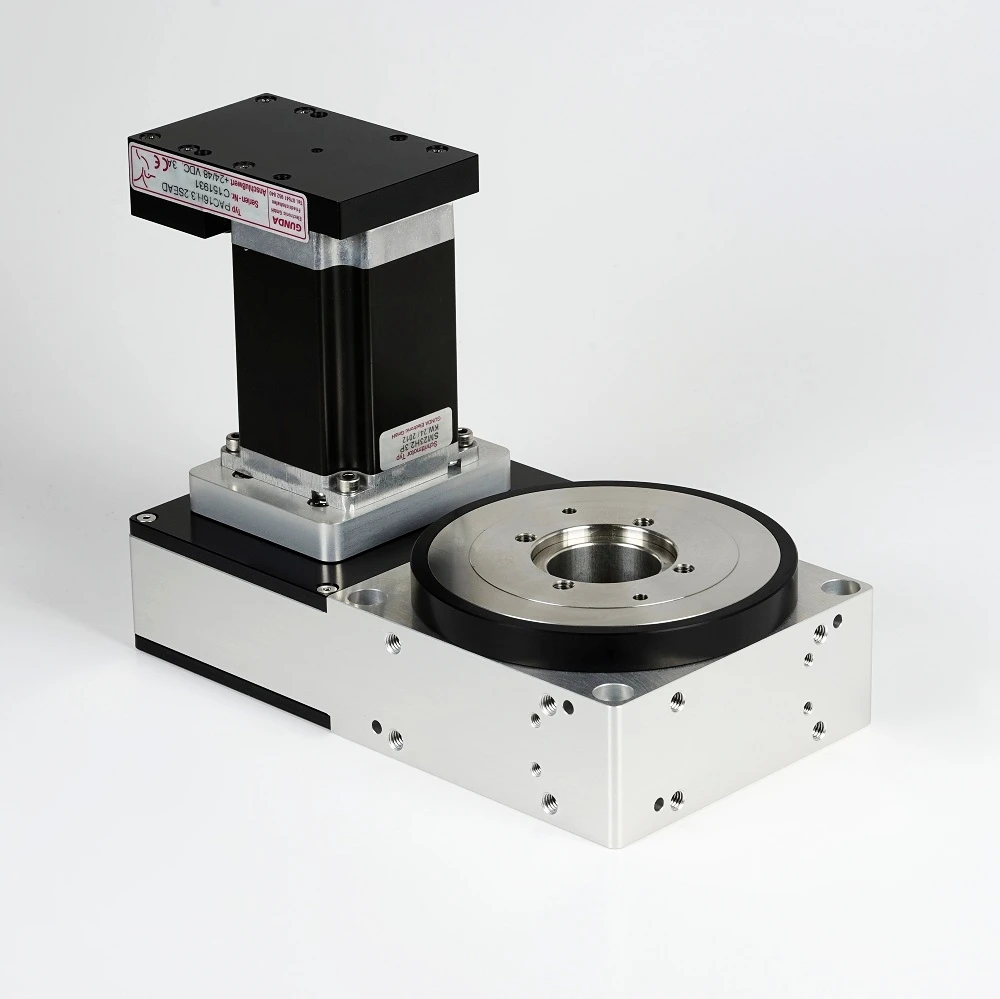

MDT360110-QN-MO-S
MDT = Motor Rotary Tables
360 = rotatable by 360° (through)
110 = diameter of the rotary stage 110 mm
QN = Quickness Line
MO = motor orientation upwards (equilateral to the rotary stage)
S = with motor and control
MDT360110-QN-MU-B
MDT = Motor Rotary Table
360 = rotatable by 360° (through)
110 = diameter of the rotary table 110 mm
QN = Quickness Line

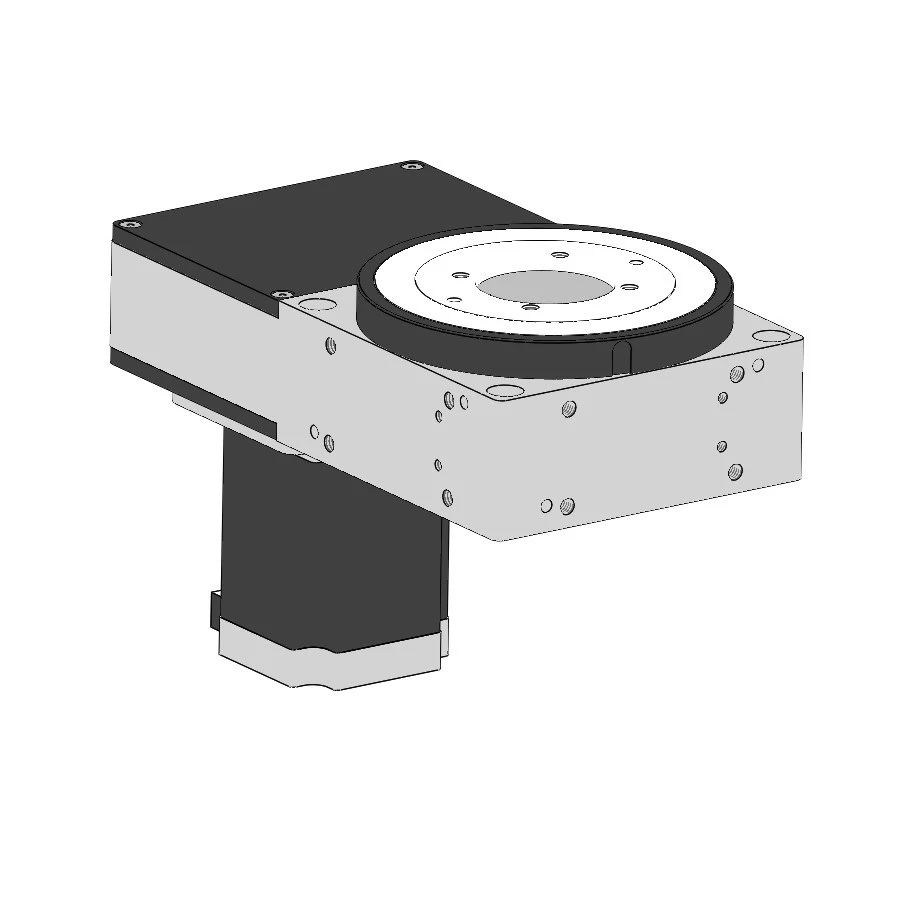

MU = Motor orientation downwards (opposite the rotary table)
B = without motor
MDT360110-QN-MU-M
MDT = Motor Rotary Table
360 = rotatable by 360° (through)
110 = diameter of the rotary stage 110 mm
QN = Quickness Line
MU = motor orientation downwards (opposite the rotary stage)
M = with motor

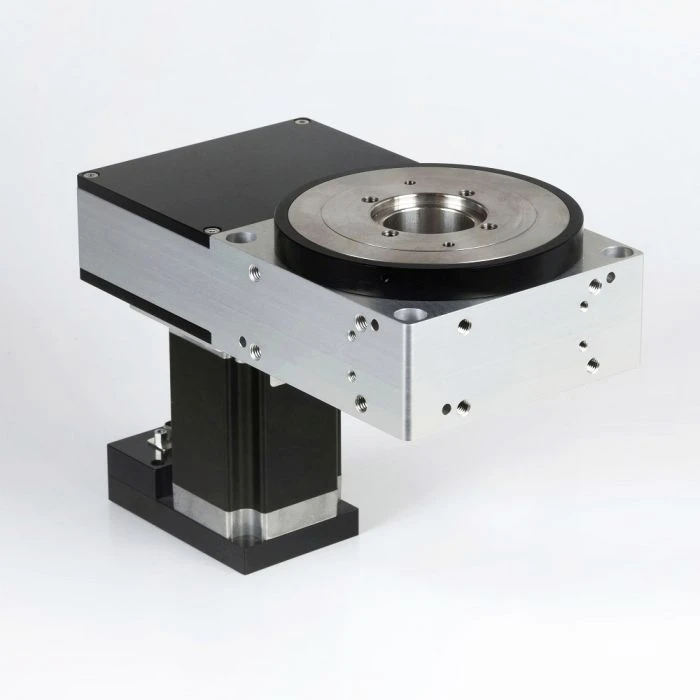

MDT360110-QN-MU-S
MDT = Motor Rotary Table
360 = rotatable by 360° (through)
110 = diameter of the rotary stage 110 mm
QN = Quickness Line
MU = motor orientation downwards (opposite the rotary stage)
S = with motor and control
