Clamping Screw KS-M4X7
Delivery Time
2-3 Tage
- The clamping screw KS-M4X7 attends to stick the spindel additionally. For positioning tables, cross tables and vertical lift tables with size 08 or 12
- prohibits unauthorized readjusting
- screw made of VA
- plunger made of POM
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Flyer Positioniersystem manuell / Manual Actuators | 2.3 MB | Download | ||
|
|
Kurzanleitung Positioniersysteme manuell | 2.6 MB | Download |
function:
- the clamping screw will be screwed into the bearing block
- while tightening the screw, the grub screw with the plastic inset presses onto the spindle bearing of the positioning table
performance:
- the clamping screw KS-M4X7 serves for an additionally clamping of the spindle of positioning tables, cross tables and vertical lift stages with the size 08 and 12
- prevent unauthorized adjusting

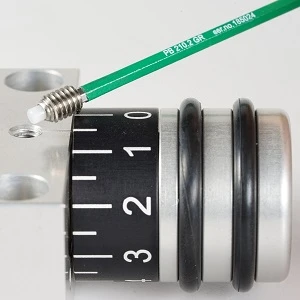

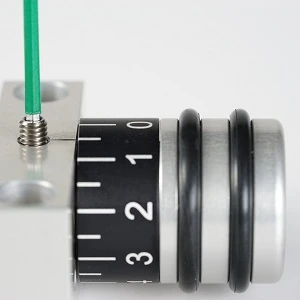

mounting of the clamping screw into the bearing block:
